Patent Led Grow Light Module
This grow lights are powerful and great to replace traditional HPS lights and Gavita 1930e.
This series grow lights are of 800w 1200w options. Brighter than other brand lights. 800W is with 3328pcs leds, 1200w is with 4608pcs leds. Top Samsung leds used to ensure better performance. PPE 3.0umol/J.
And they are with dimmer and RJ port, that mean it can controller by controller. Very easy and convenient to use for commercial growing.
Full spectrum led grow lights with all needed kit packed. Easy to replace traditional plant lights with exsiting electric.
Bellow is the specification of this patent module led grow lights 800w 1200w.
| Power | 800W | 1200W |
|---|---|---|
| Model | STG-800W-F | STG-1020W-F |
| Input Voltage | AC 100-277V 50/60Hz | AC 100-277V 50/60Hz |
| Leds | Samsung Leds | Samsung Leds |
| Led quantity | 3328pcs | 4608pcs |
| Driver | Sosen driver | Sosen driver |
| PPE | 3.0 μmol/j | 3.0 μmol/j |
| PPF | 2400 μmol/s | 3600 μmol/s |
| Color | Full spectrum white + 660nm plant red | Full spectrum white + 660nm plant red |
| Lumen Efficiency | 160 lm/w | 160 lm/w |
| Lumen | 128000lm | 192000lm |
| CRI | Ra>80 | Ra>80 |
| Beam Angle | 120º | 120º |
| Material | Aluminum | Aluminum |
| PF Rate | 0.98 | 0.98 |
| Product Size | 1085*1060*47mm | 1085*1060*47mm |
| Mounting Height | >6" (15cm) | >6" (15cm) |
| Max Coverage | 6x6ft | 6x6ft |
| Supplementation Time | 16-20H/day | 16-20H/day |
| IP | IP54 | IP54 |
| Working Temperature | -37℃ ~+55℃ | -37℃ ~+55℃ |
| Warranty | 3-5 years | 3-5 years |
| Packing | 1pc/Carton, 16kg | 1pc/Carton, 23kg |
| Carton Size | 76*34*18cm | 85*45*18cm |

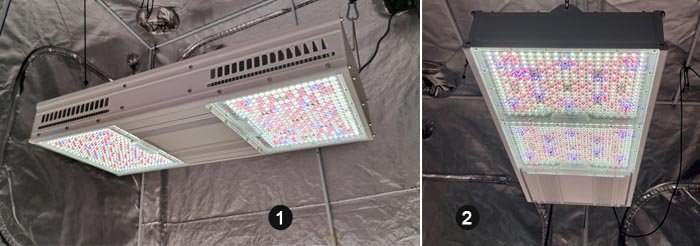

HPS Replacement Led Grow Light Module | With Lens
The 2 types of HPS replacement led grow light module are with lense. They almost are of the same design, use the same power leds 5W per chip, Dimmer and RJ port daisy chain function. And with quality lens of high transimittance, focusing lighting.
Of course, there is a difference, iluminating interface. One is with a whole illuminating panel, driver aside. The other divides it, driver in center. This is a good benefit for better and more uniform lighting distribution.
Both types are of 800w 1200w options.
Contact us with number 1/2 and wattage you want, we will reply you with quote within 8 hours.
Bellow is the specification of 800w and 1200w full spectrum led grow lights, ideal for toplighting and traditional plant grow light replacement..
| Power | 800W | 1200W |
|---|---|---|
| Model | STG-800W-F | STG-1020W-F |
| Input Voltage | AC 100-277V 50/60Hz | AC 100-277V 50/60Hz |
| Leds | Samsung Leds | Samsung Leds |
| Led quantity | 628pcs*5W | 942pcs |
| Driver | Sosen driver | Sosen driver |
| PPE | 3.1 μmol/j | 3.2 μmol/j |
| PPF | 2480 μmol/s | 3840 μmol/s |
| Color | Full spectrum white + 660nm plant red+ Blue light | Full spectrum white + 660nm plant red+ Blue light |
| Lumen Efficiency | 160 lm/w | 160 lm/w |
| Lumen | 128000lm | 192000lm |
| CRI | Ra>80 | Ra>80 |
| Beam Angle | 120º | 120º |
| Material | Aluminum | Aluminum |
| PF Rate | 0.98 | 0.98 |
| Mounting Height | >24" | >24" |
| Coverage | 4x4ft | 6x6ft |
| Supplementation Time | 16-20H/day | 16-20H/day |
| IP | IP54 | IP54 |
| Working Temperature | -37℃ ~+55℃ | -37℃ ~+55℃ |
| Warranty | 3-5 years | 3-5 years |
| Packing | 1pc/Carton, 18.3kg | 1pc/Carton, 23kg |
| Carton Size | 114*14*100cm | 136*73*33cm |
Full spectrum
Ideal for growing plants from start to finishe with increased UV, blue, red and IR light for healthy flowering and results.
Maksdep full spectrum led grow lights are suitable for all stages of plant growth, from seedlings to flowering. Shrot lifecycle, increase yields quality and quantity.
Daisy Chain Function:
Each light is with RJ port for controller, which is sold separately.
Daisy chain function allows for convenient commercial indoor growing. Growers can control 200+ lights with a controller. They can set time, simulating sunrise and sunset; dim light to providing proper lights for their plants. And take control of temperature and humidity. It’s the step of science growing.
Packing Include:
1x LED Grow Light Fixture
1x Power Cord
2x Adjustable Hanger
1x Sgnal Wire
1x Manual
